T491B106K004AT Cap Tant Solid 10uF 4V B CASE 10% (3.5 X 2.8 X 1.9mm) SMD 3528-21 3.5 Ohm 125°C T/R

Product Categories

Shenzhen Weitaixu Capacitor Co.,Ltd

Contact Now

Name: T491B106K004AT Cap Tant Solid 10uF 4V B CASE 10 35 X 28 X 19mm SMD 352821 35 Ohm 125C TR
Brand: Ke met
Price: 1 USD

Brand Name : Ke met

Model Number : T491B106K004AT

Certification : Original Part

Place of Origin : Shenzhen, China

MOQ : 2000PCS/Reel

Price : Negotiation

Payment Terms : T/T, Western Union, Paypal, Wechat Pay

Supply Ability : 1000 Reels per Week

Delivery Time : 2~5 Working Days (Subjected to availability of Stock)

Packaging Details : 2000PCS/Reel

Operating Temperature : -55°C to +125°C

Capacitance : 10uF

Tolerance : ±10%

Product Type : SMD Tantalum Capacitors

Rated Voltage : 4V

Packing : 2000PCS/Reel

Description : CAP TANT 10UF 10% 4V 1411 3528-21

Contact Now

T491B106K004AT Cap Tant Solid 10uF 4V B CASE 10% (3.5 X 2.8 X 1.9mm) SMD 3528-21 3.5 Ohm 125°C T/R

Product Specifications :

	Description	Value
	Case Size	3528-21
	Case Style	Molded
	Construction	Flat
	Dissipation Factor	6 %
	Equivalent Series Resistance	3.5 Ohm
	Lead Finish	Matte Tin
	Leakage Current	0.4000 uA
	Mounting	Surface Mount
	Operating Temperature	-55 to 125 °C
	Product Dimensions	3.5 x 2.8 x 1.9
	Product Length	3.5 mm

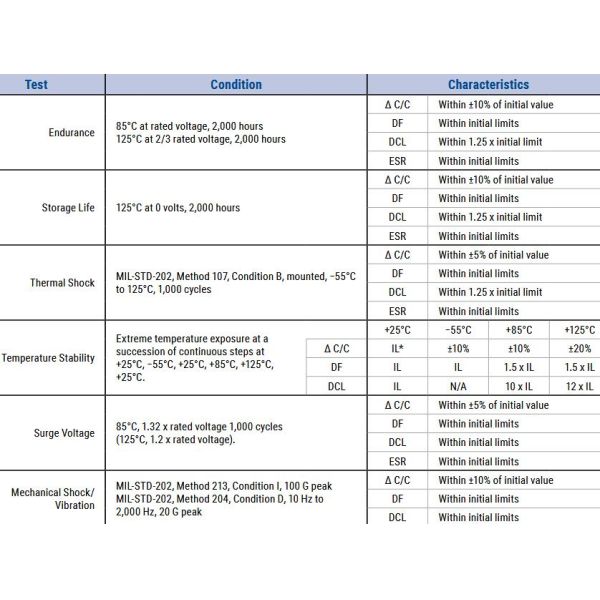

Performance Characteristics :

Item	Performance Characteristics
Operating Temperature	−55°C to 125°C
Rated Capacitance Range	0.1 – 1,000μF at 120Hz/25°C
Capacitance Tolerance	K tolerance (10%), M tolerance (20%)
Rated Voltage Range	2.5 – 50 V
DF (120 Hz)	Refer to Part Number Electrical Specification Table
ESR (100 kHz)	Refer to Part Number Electrical Specification Table
Leakage Current	≤0.01 CV (μA) at rated voltage after 5 minutes

Qualifications :

T491B106K004AT Cap Tant Solid 10uF 4V B CASE 10% (3.5 X 2.8 X 1.9mm) SMD 3528-21 3.5 Ohm 125°C T/R

or product datasheet, CONTACT US directly.
